Syphon

The original product made by Hario has a few problems with their ergonomics and open fire safety issue.

Different types of brewing methods

Competitors

Different Hario syphon models

Function Analysis

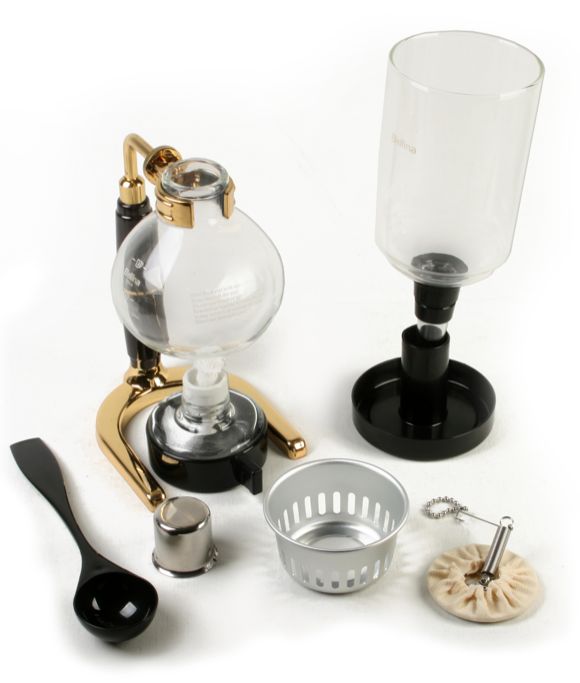

After taking the syphon apart, I counted up the number of parts this product is made of and the total number is 27 individual pieces,

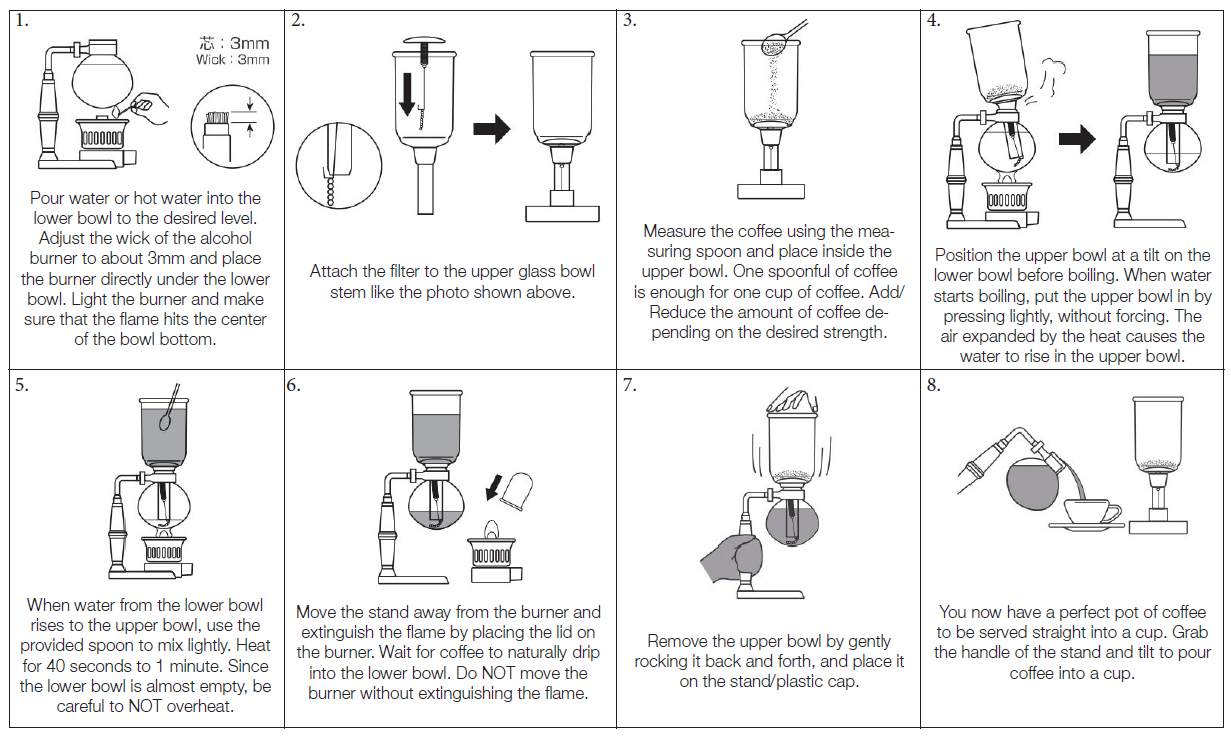

Step by Step instructions on how to use Hario's syphon.

Task Analysis

How to clean Hario's Syphon

1. Dump used coffee grounds into the trash can.

2. Remove filter cloth and rinse/dry thoroughly.

3. Rinse top and bottom glass with gentle soap.

4. Set it on a rack and let it air dry.

Regional Popularity

Google Trends

Syphon Accessories

Replaceable parts in case they get damaged.

Packaging (Original Box)

1. Cheap Printing.

2. Able to see ripples from cardboard box texture.

3. White, Pink, Brown, Black, Magenta, Chrome (Minimum 6 colors).

4. Bubble wrap on the inside.

5. Unable to be stacked on top of another, package wouldn't be able to withstand the weight.

6. The packaging had interesting inner flaps that folded over to hold the product in place. For more information about the product, look at the flap.

7. Measuring spoon and wooden stirring stick was included.

8. No wasted space.

Safety Hazards

1. Open Flames

2. Very hot glass.

3. Fragile material (glass) if broken, it can cause serious injuries.

4. If bottom glass is overheated (no water and burning under open flames), it has the possibility of exploding..

5. If the bottom pot is not clamped properly, there is a possibility of it detaching and falling from the base/stand.

Redesign

Proposal to Hario

1. Incorporate a digital timer

2. Use different mixed materials

3. Reduce parts

4. Come up with different ways to pour coffee

Keep the original look and feel

1. The reason why Hario ended up with this design is because they intended it to show off the interesting science that goes on behind it "Beauty of science". The design looks like a science experiment and they choose brown plastic to match the brown coffee color.

Ergonomics

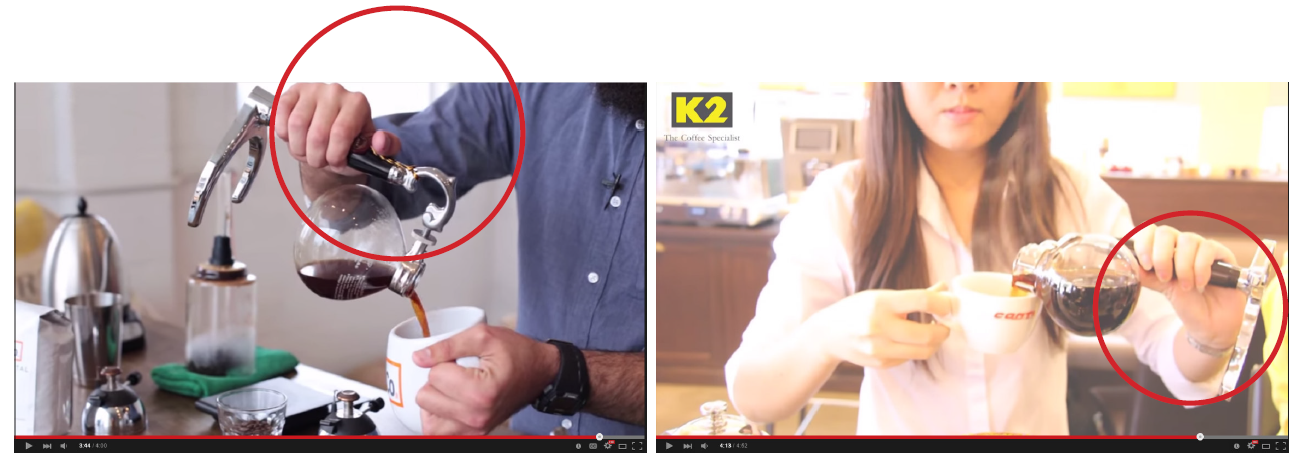

When pouring coffee out of the original design, your wrist is in an awkward position.

Ideation Phase

Explored different forms.

3D drawings of parts

I kept the original functionality of the syphon but because of the safety hazard, I decided to remove the open flame and decided to make it into a hotplate the whole device can rest on.
